PVPX-MH

Legacy

PVP X-series Mounting Hardware

Find a dealer

Downloads

Features

  • Mounting hardware designed to work with the PVP X3 and the PVP X6IP products
  • Includes 10 kits designed to work for a variety of installation types
  • Designed for use with standard clamps, strut channel and steel/aluminum square tubing

Construction/Physical

  • Dimensions (mounting plate): 3.15 x 2.48 x 0.67 in (80 x 63 x 17 mm)
  • Dimensions (shipping size): 12.6 x 6.7 x 2.64 in (320 x 170 x 67 mm)
  • Weight: 8.4 lb (3.81 kg)
  • Weight (shipping weight): 9 lb (4.08 kg)
  • Threaded Bolt: M12
  • Exterior Color: Black
  • Housing Material: Steel

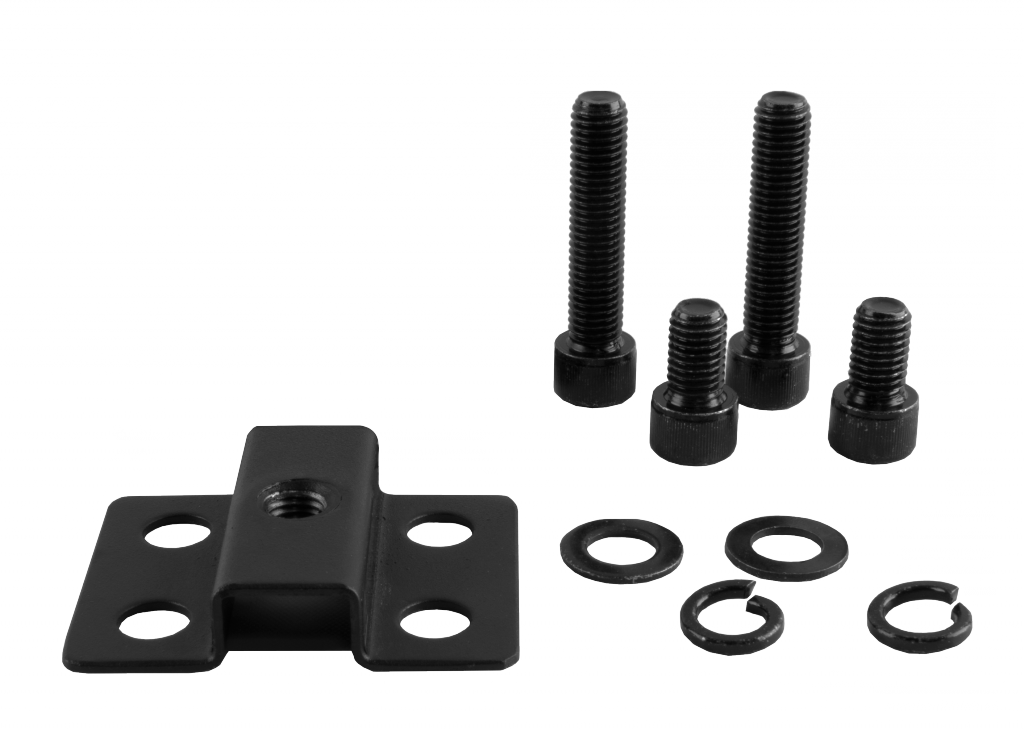

What’s Included

  • Mounting Plate (10)
  • Long allen screw (40)
  • Short allen screw (40)
  • Washer (40)
  • Lock washer (40)
