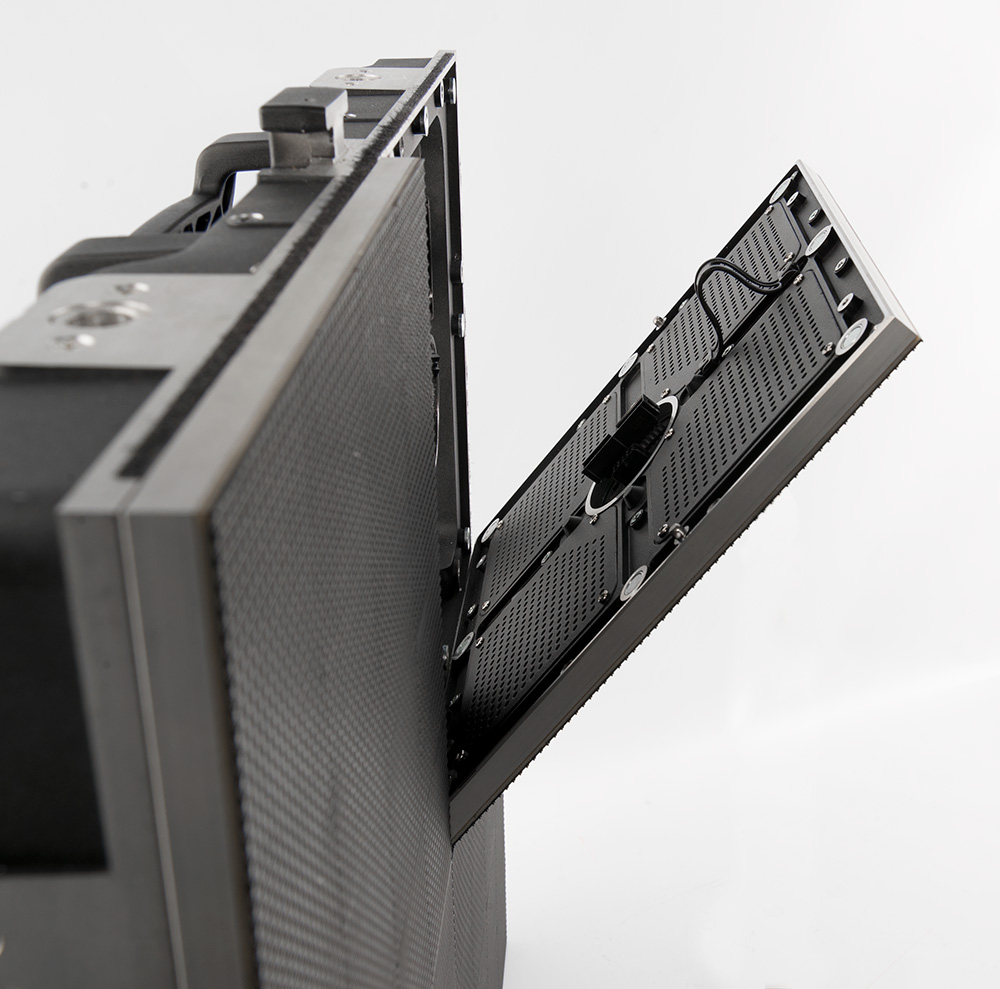

  • Side Module Open
  • Right Side Panel
  • Left Side Panel
  • Module Back Right
  • Module Back
  • Side Module Front
  • Side Module Open
  • Right Side Panel
  • Left Side Panel

PVP X3

PVP X3 raises clarity, durability and reliability in video panels to new levels of performance with a superior high resolution pixel pitch of 3.9 mm, 16,384 full black body SMD 2121 LEDs and a sturdy die-cast aluminum housing and magnetic LED modules for fast serviceability. As with all CHAUVET Professional VIP panels, fast setup and teardown are a given. Its superb contrast ratios and brilliant color reproductions make it equally effective in rental and installation applications of all sizes.

Features

  • 3.9 mm pixel pitch modular video panel with SMD 2121 LEDs
  • Stainless steel hardware is integrated into each panel for secure interlocking between panels
  • Solid aluminum die-cast construction makes these panels durable for the touring/rental market
  • Magnetic LED modules make replacing them fast and painless in the field or on the repair bench
  • Tri-color (RGB), full black body LEDs provide the highest in class contrast and black levels
  • Computer guided CNC cutting provides ultimate precision for seamless modular connections
  • Works with VIP Driver and VIP Signal Distributor
  • Use with the X-Series Rig Bar to hang the panels, or with the M12 mounting points on the back of each panel

Optical

  • Light Source: 16,384 LEDs (tri-color RGB) SMD 2121, 50,000 hours life expectancy
  • Color Wavelength: red (625 nm), green (525 nm), blue (470 nm)
  • Viewing Angle: 130°
  • Illuminance: 1,500 NITS
  • Pixels: 128 x 128
  • Pixel Pitch: 3.9 mm
  • Pixel Density: 65,536/m2
  • Contrast Ratio: 20,776:1
  • Display Refresh Rate: 1,500 Hz; 2,400 Hz available

Construction/Physical

  • Dimensions: 19.7 x 3.5 x 20.35 in (500 x 89 x 517 mm)
  • Weight: 20 lb (9.07 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Maximum vertical hang: 20 panels
  • Transparency: 0%

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: Amphenol XLRnet (etherCON Compatible)
  • Cable Length (signal extension): 2.46 ft (0.75 m)
  • Cable Length (power): 6 ft (1.83 m)
  • Cable Length (power extension): 2.46 ft (0.75 m)

Control

  • Control Protocol: LINSN
  • Maximum Panels/VIP Driver: 70

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 19 units @ 120 V; 32 units @ 208 V; 35 units @ 230 V
  • Power and Current: 117 W, 0.95 A @ 120 V, 60 Hz
  • Power and Current: 116 W, 0.56 A @ 208 V, 60 Hz
  • Power and Current: 117 W, 0.52 A @ 230 V, 50 Hz

Certifications/Qualifications

  • CE, MET, EMC
  • IP Rating: IP43, indoor use
  • Thermal Dissipation (Typical): 120 BTU per hour
  • Thermal Dissipation (Design Limit): 298 BTU per hour
  • Ambient Operating Temperature: -4-122 °F (-20-50 °C)

What’s Included

  • PVP X3
  • Seetronic powerKON power cord
  • Seetronic powerKON signal extension cords
  • Flight case
