PVP S7

Legacy

PVP S7

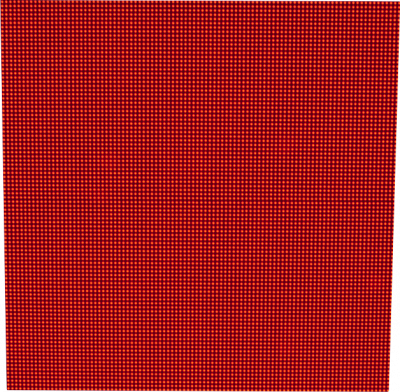

PVP S7 is a high definition video panel with SMD LEDs and a pixel pitch of 7.8mm—ideal for high-resolution graphics and live-action video. Designed for indoor use, these solid video panels easily hang from custom rigging clamps and integrated hardware. The tight pixel pitch and miniscule SMD LEDs allow for equally pleasing output in short- and long-viewing applications.

Find a dealer

Downloads

Features

  • 7.8 mm pixel pitch video panel system featuring superb contrast through the use of blackface SMD LEDs
  • Tight binning of LEDs ensures consistent color rendering across panels
  • Lightweight and modular system for high-resolution graphics and video
  • Easy installation and connectivity using Neutrik® powerCON® and etherCON® connectors
  • Solid construction makes these a perfect product for long term installation
  • Interlocking with the PVP S5 panels to create large wall designs.
  • Tri-color SMD 3528 LEDs provide better image quality
  • Tight pixel pitch allows for equally effective close range and long range viewing
  • Designed for touring and permanent indoor installation
  • Works with VIP Driver and VIP Signal Distributor products
  • Use with PVP Rig Kit and integrated, interlocking hardware for fast and easy setup

Optical

  • Light Source: 4,096 LEDs (tri-color RGB) SMD 3528, 50,000 hours life expectancy
  • Color Wavelength: red (620 to 625 nm), green (520 to 525 nm), blue (465 to 470 nm)
  • Viewing Angle: 140°
  • Illuminance: 1,500 NITS
  • Pixels: 64 x 64
  • Pixel Pitch: 7.8 mm
  • Pixel Density: 16,384/m2
  • Display Refresh Rate: 1,200 Hz

Construction/Physical

  • Dimensions: 19.7 x 19.7 x 2.5 in (500 x 500 x 63 mm)
  • Weight: 15.8 lb (7.17 kg)
  • Threaded Bolt: M10
  • Exterior Color: Black
  • Housing Material: Aluminum alloy
  • Transparency: 0%

Connections

  • Power Connection: Edison plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: Neutrik® etherCON®
  • Cable Length (signal extension): 2.46 ft (0.75 m)
  • Cable Length (power): 6 ft (1.83 m)
  • Cable Length (power extension): 2.46 ft (0.75 m)

Control

  • Control Protocol: LINSN
  • Maximum Panels/VIP Driver: 300

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 16 units @ 120 V; 27 units @ 208 V; 28 units @ 230 V
  • Power and Current: 102 W, 0.85 A @ 120 V, 60 Hz
  • Power and Current: 105 W, 0.50 A @ 208 V, 50 Hz
  • Power and Current: 106 W, 0.47 A @ 230 V, 50 Hz

Certifications/Qualifications

  • CE
  • IP Rating: IP40, indoor use
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

What’s Included

  • PVPS7X8
  • Neutrik® powerCON® power cord
  • 8 Neutrik® powerCON® power extension cords
  • 8 Neutrik® etherCON® signal extension cords
  • Road case
  • Warranty card
  • User Manual
  • PVPS7X2
  • 2 Neutrik® powerCON® power extension cords
  • 2 Neutrik® etherCON® signal extension cords
  • Flight Case
  • Warranty card
  • User Manual

Optional Accessories

Required Accessories

  • Required Software: CHAUVET® LED Studio and Windows®7
  • Accessories (required): VIP Driver
