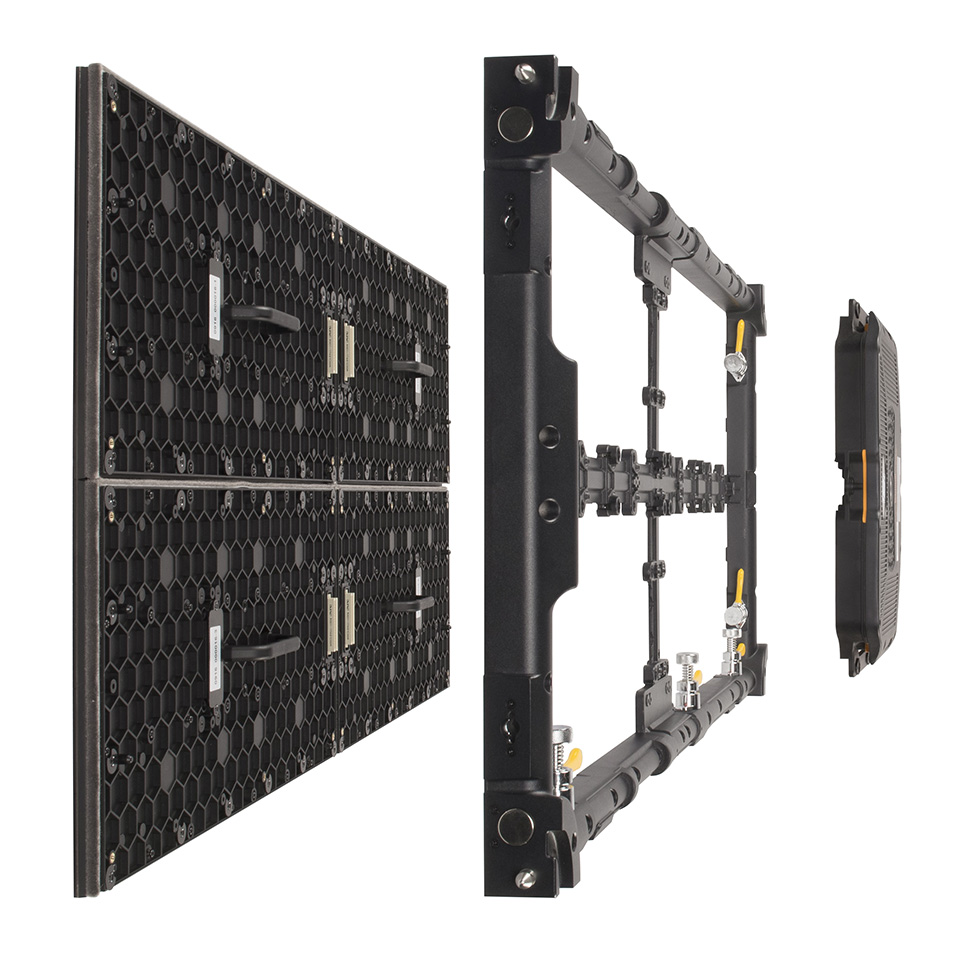

  • Modular design allows for more efficient servicing
  • Back Panel featuring dual backup power
  • Magnetic tool removes LED modules
  • Quickly remove the LED modules without tools
  • Easily remove masks without tools for servicing
  • Modular design allows for more efficient servicing

F4

F4 is a 1 m x 0.5 m LED video panel equally suited for installations and rentals. It runs on the Novastar control protocol and is fully front & rear serviceable with easily accessed magnetic LED modules. The panels may be mounted directly on a flat wall due to the front-service option.

Features

  • 4.8 mm pitch video panel works with the VIP Drive 43Nova, using the Novastar control protocol
  • Black body LEDs accurately reproduce high contrast video quality
  • 1000 x 500 mm magnesium die-cast housing makes this product among the lightest in its class
  • Magnetic LED modules and modular control box make service fast and easy
  • Full front and rear service maximizes installation and maintenance
  • Modular system allows for front installation onto a flat structure, maximizing installation flexibility
  • Magnetic connection and positioning pins assist in hanging panels
  • Dual backup power supplies for more stable displays
  • Intelligent modules with dedicated memory improve the image quality and simplify maintenance
  • Easily replace the LED masks without tools so your display remains flat even after mishandling

Optical

  • Light Source: 21,632 LEDs (tri-color RGB) SMD 2828, 50,000 hours life expectancy
  • Color Wavelength: red (619 to 624 nm), green (522 to 525 nm), blue (468 to 471 nm)
  • Viewing Angle: 140°
  • Calibrated Illuminance: 1,500 NITS
  • Maximum Illuminance: 1,850 NITS
  • Contrast Ratio: 9,250:1
  • Pixels: 104 x 208
  • Pixel Pitch: 4.8 mm
  • Minimum Viewing Distance: 13 ft (4 m)
  • Pixel Density: 43,264/m2
  • Display Refresh Rate: 3,840 Hz

Construction/Physical

  • Dimensions: 19.69 x 1.89 x 39.37 in (500 x 48 x 1000 mm)
  • Weight: 28.4 lb (12.88 kg)
  • Threaded Bolt: M12
  • Exterior Color: Black
  • Housing Material: Magnesium die-cast
  • Maximum vertical hang: 16 panels
  • Maximum horizontal hang: 22 panels
  • Transparency: 0%

Connections

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: Neutrik® etherCON®
  • Cable Length (signal extension): 4 ft (1.2 m)
  • Cable Length (power): 6 ft (1.8 m)
  • Cable Length (power extension): 6 ft (1.8 m)

Control

  • Control Protocol: Novastar
  • Maximum Panels/VIP Drive 43Nova: 120 (Video products only)
  • Maximum Supported LEDs (per driver): 2,621,440 (Video products only)
  • Video Input (compatible): 60 Hz

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 257 W, 2.05 A @ 120 V, 60 Hz
  • Power and Current: 249 W, 1.27 A @ 208 V, 60 Hz
  • Power and Current: 248 W, 1.19 A @ 230 V, 50 Hz

Certifications/Qualifications

  • CE, MET
  • IP Rating: IP30, indoor use

What’s Included

  • 4 F4
  • 1 Road case
  • 1 Neutrik® powerCON® power cord
  • 4 Neutrik® powerCON® power linking cords
  • 4 Neutrik® etherCON® signal linking cords

Optional Accessories

  • ArKaos Media Master Express + KN software
  • Neutrik powerCON cables
  • Neutrik etherCON cables

Required Accessories

  • Required Software: Novastar mapping software
  • Controller (required): VIP Drive 43 Nova
  • Accessories (optional): MT-03 LED module removal tool
  • Compatible Mounting Options: F-Series Rig Bar (RB-F50CM, RB-F100CM)(truss mounting), M10 Bolt (front mounting), M12 Bolt/Clamp (rear mounting) (Video and Pixel products only)
